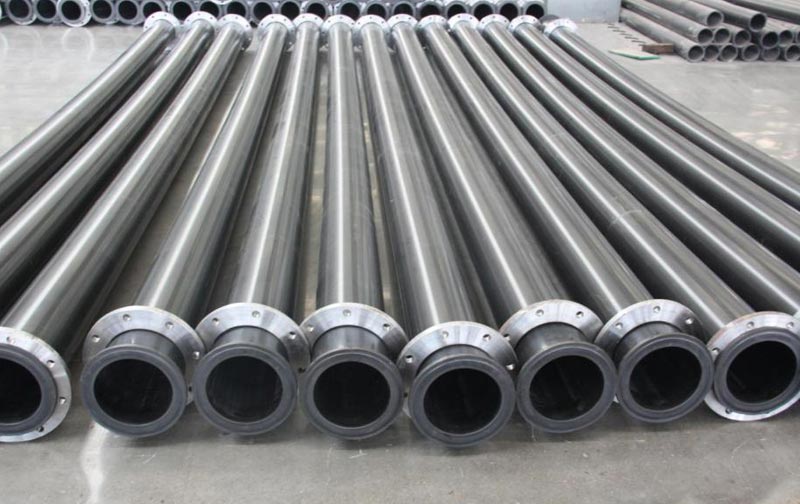

Attributes of UHMWPE Pipe
UHMWPE Raw Material Properties
| Property | Raw Material Values Only |
| PHYSICAL PROPERTIES | |
| Raw Material | UHMWPE |
| Density (kg/m3) | ≥ 930 |
| Water Absorption 24hrs(%) | <0.01 |
| MECHANICAL PROPERTIES | |
| Tensile strength at Break (Mpa) | ≥ 29 |
| Elongation at Break(%) | ≥ 300 |
| Impact strength(KJ/㎡) | ≥ 150 |
| Wear Loss (Factory test) | < 28% |
| Coefficient of Friction (unplaned) | 0.009 |
| Shore Hardness( R) | 65-70 |
| THERMAL PROPERTIES | |
| Coefficient of Linear Expansion(10-4) | 1.5 |
| Heat Deflection Temp at 0.45 Mpa(℃) | ≥ 50 |
| ELECTRICAL PROPERTIES | |
| Surface Resistivity(Ohm) | 1109Ω |
Advantages of UHMWPE Floating pipe:
1. High Wear Resistant
Compare with existing plastic pipes, Wear resistant UNMWPE pipe has the most excellent wear resistance which is 4 to 7 times that of Q235 steel pipe and 2.7 times that of wear-resistant steel 16Mn. Therefore it increases pipe flow rate and improves the transmission efficiency of more than 20%. The working life of UHMWPE pipes is more than 3 times that of wear-resistant steel pipe. Wear resistant UHMWPE pipe has great advantages to replace traditional metal pipes in delivering abrasive media.
2. Impact Resistant
Wear resistant UHMWPE pipe is greatly impact resistant which is 5 times that of HDPE pipe, 2 times that of PC pipe and 10 times that of PTFE pipes.With extraordinary impact resistance，UHMWPE pipe can withstand great water hammer impact when starting up pump station.
3. Low Energy Consumption
Wear resistant UHMWPE pipe is self-lubrication and non-adhesive. Its coefficient of friction resistance is 0.009 while that of steel pipe is 0.013. With the same diameter, flow rate of UHMWPE pipe is larger than steel pipe, and with the same flow rate, UHMWPE pipe can save 25% energy.
4. Non-scaling
With roughness of 0.00022 and smooth pipe inner wall, it can efficiently avoid scaling without acid cleaning, which save a lot of maintenance cost.
5. High Flexibility
With high toughness and elongation of no less than 350%, the UHMWPE pipe and the connection site will not crack when crust settling which maximally ensures to supply water normally.
Specifications of UHMWPE Floating Pipe:
| I.D mm | WALL THICKNESS mm | |||||
| 0.6Mpa | 0.8 Mpa | 1.0 Mpa | 1.25 Mpa | 1.6 Mpa | 2.0 Mpa | |
| 150 | — | — | 7 | 8 | 11 | 14 |
| 200 | — | 7 | 9 | 11 | 14 | 18 |
| 250 | 8.4 | 10.6 | 12.9 | 15.7 | 19.9 | 24.7 |
| 300 | 9.7 | 12.3 | 15 | 18.5 | 23.4 | 29.3 |
| 350 | 9 | 12 | 15 | 19 | 25 | 32 |
| 400 | 10 | 14 | 17 | 22 | 29 | 36 |
| 450 | 12 | 16 | 20 | 25 | 32 | 41 |
| 500 | 13 | 17 | 22 | 27 | 36 | 45 |
| 550 | 14 | 19 | 24 | 30 | 39 | 50 |
| 600 | 15 | 21 | 26 | 33 | 43 | — |
| 650 | 17 | 22 | 28 | 36 | 46 | — |
| 700 | 18 | 24 | 30 | 38 | 50 | — |
| 750 | 19 | 26 | 33 | 41 | — | — |
| 800 | 21 | 28 | 35 | 44 | — | — |
| 850 | 22 | 29 | 37 | 47 | — | — |
| 900 | 23 | 31 | 39 | 49 | — | — |
| 1000 | 26 | 34 | 43 | — | — | — |
| 1100 | 28 | 38 | 48 | — | — | — |
| 1200 | 31 | 41 | — | — | — | — |
Custom sizes available, where moulds already exist from 50-1200mm OD, up to 65 WT. Product can be manufactured in any colour, and to all conformance requirements.
Key Application of UHMWPE Pipe
